9046 Series Polyester Reinforced – 45°

9046 Series Polyester Reinforced – 45°

45° coolant elbows designed to meet high performance requirements specified in various industry standards.

FEATURES & BENEFITS

  • 4 ply silicone polyester reinforced configuration to provide strength and flexibility.
  • Silicone liner creates barrier to isolate medium.
  • Recommended for temperatures: -65° to +350°F (-53.9°C to +176.6°C).
  • Custom ply configurations available to meet flexibility and burst requirements.
  • UV and ozone resistant.
  • Meets and exceeds all performance and physical characteristics of SAE J20 R1, SAE J20 R1 H.T. Class A, TMC RP303B Grade I and Grade II, Mil Spec A-A-52426 and various heavy-duty OEM requirements.
Part # Hose ID Leg 1 Leg 2 Inside Radius Wall Thickness
inches (A) inches (B) inches (R) inches (T) inches
9046-050-MK 0.50 6.00 6.00 1 0.19
9046-062-MK 0.62 6.00 6.00 1 0.19
9046-075-MK 0.75 6.00 6.00 1 0.19
9046-087-MK 0.87 6.00 6.00 1.5 0.19
9046-100-MK 1.00 6.00 6.00 1.5 0.19
9046-125-MK 1.25 6.00 6.00 1.75 0.19
9046-150-MK 1.50 6.00 6.00 2 0.19
9046-175-MK 1.75 6.00 6.00 1.75 0.19
9046-200-MK 2.00 6.00 6.00 2 0.19
9046-225-MK 2.25 6.00 6.00 2.25 0.19
9046-250-MK 2.50 6.00 6.00 2.5 0.19
9046-275-MK 2.75 6.00 6.00 2.75 0.19
9046-300-MK 3.00 6.00 6.00 3 0.19
9046-350-MK 3.50 6.00 6.00 3.5 0.19
9046-400-MK 4.00 6.00 6.00 4 0.19

3646 Series Aramid – 45°

3646 Series Aramid – 45°

Aramid reinforced 45° high temperature elbow, designed to meet modern elevated engine compartment temperatures.

FEATURES & BENEFITS

  • 4 ply silicone aramid reinforced configuration.
  • Economical for a wide variety of turbocharger applications.
  • Designed and engineered for a wide variety of high temperature turbocharger applications.
  • Resistant to minor oil splash and petrochemical exposure.
  • Recommended for temperatures: -65° to 500°F (-53.9°C to 260°C).
  • Excellent flexibility.
  • UV and ozone resistant.
  • Fluorocarbon liner available for increased petrochemical combustion residue resistance.
  • Heat shield available.
  • Custom ply configurations available to meet flexibility and burst requirements.
Part # Hose ID Leg 1 Leg 2 Inside Radius Wall Thickness
inches (A) inches (B) inches (R) inches (T) inches
3646-087-MK 0.875 6.00 6.00 1.50 0.16
3646-100-MK 1.00 6.00 6.00 1.50 0.16
3646-125-MK 1.25 6.00 6.00 1.75 0.16
3646-138-MK 1.375 6.00 6.00 2.50 0.16
3646-150-MK 1.50 6.00 6.00 2.00 0.16
3646-175-MK 1.75 6.00 6.00 1.75 0.16
3646-200-MK 2.00 6.00 6.00 4.00 0.16
3646-225-MK 2.25 6.00 6.00 4.00 0.16
3646-250-MK 2.50 6.00 6.00 3.00 0.16
3646-275-MK 2.75 6.00 6.00 3.50 0.16
3646-300-MK 3.00 6.00 6.00 4.00 0.16
3646-350-MK 3.50 6.00 6.00 3.50 0.16
3646-400-MK 4.00 6.00 6.00 4.00 0.16

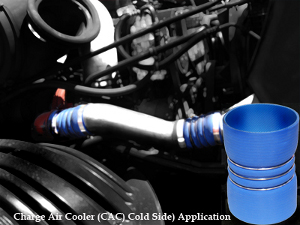

CAC Hose – Charge-Air 784 Series Cold Side

CAC Hose – Charge-Air 784 Series Cold Side

Designed and engineered to provide a connection between engine mounted charge air system components. Ideal for handling slight misalignments and isolating vibration between hose ends.

FEATURES & BENEFITS

  • 4 ply silicone polyester reinforced configuration.
  • Convolutions increase flexibility in high vibration situations.
  • 316 Stainless Steel restraining rings reduce swell and increase hoop strength.
  • Recommended for temperatures: -65° to +350°F (-53.9°C to +176.6°C).
  • Fluorocarbon liner available for increased petrochemical combustion residue resistance.
  • Combines high performance and economy.
  • UV and ozone resistant.
Part # Hose ID Hose OD Hose Length
inches
inches mm inches mm
784-250-060 2.50 63.5 2.76 70.10 4.00
784-250/300-040 2.50 to 3.00 inch transition 6.00
784-300-060 3.00 76.2 3.26 82.80 6.00
784-300/350-060 3.00 to 3.50 inch transition 6.00
784-350-060 3.50 88.90 3.76 95.50 6.00
784-350/400-060 3.50 to 4.00 inch transition 6.00
784-400-060 4.00 101.60 4.26 108.20 6.00
784-400-080 4.00 101.60 4.26 108.20 8.00
784-500-060 5.00 127.00 5.26 133.60 6.00
784-500-070 5.00 127.00 5.26 133.60 7.00
784-500-080 5.00 127.00 5.26 133.60 8.00

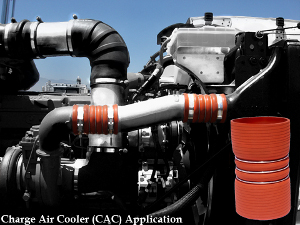

CAC Hose – Charge-Air 367 Series Hot Side

CAC Hose – Charge-Air 367 Series Hot Side

Designed and engineered to provide a connection between engine mounted charge air system components. Ideal for handling slight misalignments and isolating vibration between hose ends.

FEATURES & BENEFITS

  • 4 ply silicone aramid reinforced configuration.
  • Convolutions increase flexibility in high vibration situations.
  • 316 Stainless Steel restraining rings reduce swell and increase hoop strength.
  • Recommended for temperatures: -65° to 500°F (-53.9°C to 260°C).
  • Fluorocarbon liner available for increased petrochemical combustion residue resistance.
  • Combines high performance and economy.
  • UV and ozone resistant.
Part # Hose ID Hose OD Hose Length
inches
inches mm inches mm
367-250-060 2.50 63.50 2.71 69.09 6.00
367-250/300-040 2.50 to 3.00 inch transition 6.00
367-300-060 3.00 76.20 3.22 81.79 6.00
367-300/350-060 3.00 to 3.50 Inch transition 6.00
367-350-060 3.50 88.90 3.72 94.49 6.00
367-350/400-060 3.50 to 4.00 Inch transition 6.00
367-400-060 4.00 101.60 4.22 107.19 6.00
367-400-070 4.00 101.60 4.22 107.19 7.00
367-400-075 4.00 101.60 4.22 107.19 7.50
367-400-080 4.00 101.60 4.22 107.19 8.00
367-450-060 4.50 114.30 4.71 119.99 6.00
367-450-075 4.50 114.30 4.72 119.99 7.50
367-500-060 5.00 127.00 5.22 132.59 6.00
367-500-070 5.00 127.00 5.22 132.59 7.00
367-500-080 5.00 127.00 5.22 132.59 8.00

70 Series – 4 Ply

70 Series – 4 Ply

For heavy duty pressure connections in hostile engine environments. Ideal for extreme temperatures and various pressure ranges where high performance levels are required.

FEATURES & BENEFITS

  • 4 ply silicone polyester-reinforced configuration.
  • Recommended for temperatures: -65° to 350°F (-53.9°C to +176.6°C).
  • Resistant to electrochemical degradation.
  • Meets and exceeds all performance and physical characteristics of SAE J20 R1, SAE J20 R1 H.T. Class A, TMC RP303B Grade I and Grade II, Mil Spec A-A-52426 and various heavy-duty OEM requirements.
  • UV and ozone resistant.
  • NOTE. Aramid reinforced hose available for higher temperature applications.
  • Longer service life than 3 ply.
Part # Hose ID Hose OD Burst Strength
inches mm inches mm SAE J20R1 TMC
70-025 0.25 6.35 0.62 15.80 477 125
70-031 0.31 7.95 0.69 17.40 477 125
70-038 0.38 9.65 0.75 19.10 477 125
70-050 0.50 12.70 0.87 22.15 425 125
70-062 0.62 15.75 0.99 25.20 374 125
70-075 0.75 19.05 1.12 28.50 323 125
70-087 0.88 22.35 1.25 31.80 297 125
70-100 1.00 25.40 1.37 34.85 297 125
70-106 1.06 27.00 1.44 36.45 297 125
70-112 1.13 28.58 1.50 38.02 297 125
70-125 1.25 31.75 1.62 41.20 274 125
70-131 1.31 33.35 1.69 42.80 274 125
70-138 1.38 35.05 1.75 44.50 274 125
70-150 1.50 38.10 1.87 47.55 248 125
70-162 1.62 41.15 1.99 50.60 248 125
70-175 1.75 44.45 2.12 53.90 224 125
70-187 1.88 47.75 2.25 57.20 199 100
70-200 2.00 50.80 2.37 60.25 199 100
70-212 2.13 53.98 2.50 63.42 175 100
70-225 2.25 57.15 2.62 66.60 175 100
70-238 2.38 60.45 2.75 69.90 175 100
70-250 2.50 63.50 2.87 72.95 149 100
70-262 2.62 66.55 2.99 76.00 124 100
70-275 2.75 69.85 3.12 79.3 124 100
70-287 2.88 73.03 3.25 82.47 87 100
70-300 3.00 76.20 3.37 85.65 87 100
70-312 3.13 79.38 3.50 88.82 75 100
70-325 3.25 82.55 3.62 92.00 75 100
70-338 3.38 85.73 3.75 95.17 75 100
70-350 3.50 88.90 3.87 98.35 75 100
70-362 3.63 92.08 4.00 101.52 49 100
70-375 3.75 95.25 4.12 104.70 49 100
70-400 4.00 101.60 4.37 111.05 49 100
70-450 4.50 114.30 4.87 123.75 n/a 100
70-500 5.00 127.00 5.37 136.45 n/a n/a
70-550 5.50 139.70 5.87 149.15 n/a n/a
70-600 6.00 152.40 6.37 161.85 n/a n/a
70-650 6.50 165.10 6.87 174.55 n/a n/a
70-700 7.00 177.80 7.37 187.25 n/a n/a
70-725 7.25 184.15 7.62 193.60 n/a n/a
70-750 7.50 190.50 7.87 199.90 n/a n/a
70-800 8.00 203.20 8.37 212.65 n/a n/a
70-1000 10.00 254.00 10.37 263.45 n/a n/a

7030 Series – 3 Ply

7030 Series – 3 Ply

For heavy duty pressure connections in hostile engine environments. Ideal for extreme temperatures and various pressure ranges where high performance levels are required.

FEATURES & BENEFITS

  • 3 ply silicone polyester reinforced configuration.
  • Resistant to electrochemical degradation.
  • Recommended for temperatures: -65° to 350°F (-53.9°C to +176.6°C).
  • Meets and exceeds performance requirements of SAE J20RI, and physical and performance requirements of TMC RP 303B Class I and Class II.
  • Aramid-reinforced hose available for higher temperature applications.
Part #
Hose ID
Hose OD
Burst Strength
inches
mm
inches
mm
SAE J20R1
TMC
7030-025
0.25
6.35
0.58
14.73
477
125
7030-031
0.31
7.95
0.64
16.33
477
125
7030-038
0.38
9.65
0.71
18.03
477
125
7030-050
0.50
12.70
0.83
21.08
425
125
7030-062
0.62
15.75
0.95
24.13
374
125
7030-075
0.75
19.05
1.08
27.43
323
125
7030-087
0.88
22.35
1.21
30.73
297
125
7030-100
1.00
25.40
1.33
33.78
297
125
7030-106
1.06
27.00
1.39
35.38
297
125
7030-112
1.13
28.58
1.46
36.96
297
125
7030-125
1.25
31.75
1.58
40.13
274
125
7030-131
1.31
33.35
1.64
41.73
274
125
7030-138
1.38
35.05
1.71
43.43
274
125
7030-150
1.50
38.10
1.83
46.48
248
125
7030-162
1.62
41.15
1.95
49.53
248
125
7030-175
1.75
44.45
2.08
52.83
224
125
7030-188
1.88
47.75
2.21
56.13
199
100
7030-200
2.00
50.8
2.33
59.18
199
100
7030-212
2.13
53.98
2.46
62.36
175
100
7030-225
2.25
57.15
2.58
65.53
175
100
7030-238
2.38
60.45
2.71
68.83
175
100
7030-250
2.50
63.50
2.83
71.88
149
100
7030-262
2.62
66.55
2.95
74.93
124
100
7030-275
2.75
69.85
3.08
78.23
124
100
7030-287
2.88
73.03
3.21
81.41
87
100
7030-300
3.00
76.20
3.33
84.58
87
100
7030-312
3.13
79.38
3.46
87.76
75
100
7030-325
3.25
82.55
3.58
90.93
75
100
7030-338
3.38
85.73
3.71
94.11
75
100
7030-350
3.50
88.90
3.83
97.28
75
100
7030-362
3.63
92.08
3.96
100.46
49
100
7030-375
3.75
95.25
4.08
103.63
49
100
7030-400
4.00
101.6
4.33
109.98
49
100
7030-500
5.00
127.00
5.33
135.38
n/a
n/a
7030-600
6.00
152.4
6.33
160.78
n/a
n/a
7030-700
7.00
177.8
7.33
186.18
n/a
n/a
7030-800
8.00
203.2
8.33
211.58
n/a
n/a
7030-1000
10.00
254.00
10.33
262.38
n/a
n/a
