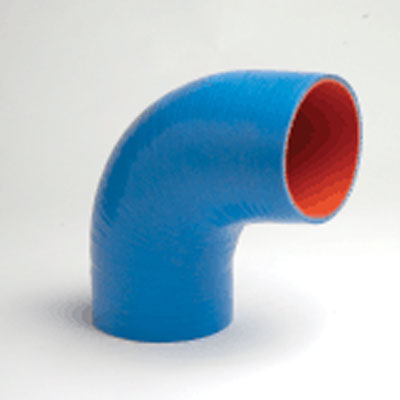

90° Silicone Hose

90° Silicone Hose

Designed for a flexible fit in wet exhaust marine applications. SAE J2006 compliant for reliability and safety.

FEATURES & BENEFITS

  • High performance.
  • Meets and exceeds SAE J2006 industry standards.
  • High-quality polyester reinforced.
  • Recommended for temperatures: -65°F to 350°F (-53.9°C to 176.6°C).
  • Note: Available in large bore — up to 10 inch diameter.
Part # ID (inches) Bore Plys Legs (inches)
90MAR-050-MK 0.50 4 6×6
90MAR-062-MK 0.62 4 6×6
90MAR-075-MK 0.75 4 6×6
90MAR-100-MK 1.00 4 6×6
90MAR-125-MK 1.25 4 6×6
90MAR-150-MK 1.50 4 6×6
90MAR-175-MK 1.75 4 6×6
90MAR-200-MK 2.00 4 6×6
90MAR-225-MK 2.25 4 6×6
90MAR-250-MK 2.50 4 6×6
90MAR-275-MK 2.75 4 6×6
90MAR-300-MK 3.00 4 6×6
90MAR-325-MK 3.25 4 6×6
90MAR-350-MK 3.50 4 6×6
90MAR-375-MK 3.75 4 6×6
90MAR-400-MK 4.00 4 6×6
90MAR-450-MK 4.50 4 6×6
90MAR-500-MK 5.00 Large Bore 4 6×6
90MAR-600-01 6.00 Large Bore 4 8.25×8.25
9068MAR-600-01 6.00 Large Bore 6 8.25×8.25
90MAR-800-01 8.00 Large Bore 4 10×10
9068MAR-800-01 8.00 Large Bore 6 10×10
90MAR-1000-01 10.00 Large Bore 4 12×12
9068MAR-1000-01 10.00 Large Bore 6 12×12

45° Silicone Hose

45° Silicone Hose

Designed for a flexible fit in wet exhaust marine applications. SAE J2006 compliant for reliability and safety.

FEATURES & BENEFITS

  • High performance.
  • Meets and exceeds SAE J2006 industry standards.
  • High-quality polyester reinforced.
  • recommended for temperatures: -65°F to 350°F (-53.9°C to 176.6°C).
  • Available in large bore — up to 10 inch diameter.
Part # ID (inches) Bore Plys Legs (inches)
9046MAR-050-MK 0.50 4 6×6
9046MAR-062-MK 0.62 4 6×6
9046MAR-075-MK 0.75 4 6×6
9046MAR-100-MK 1.00 4 6×6
9046MAR-125-MK 1.25 4 6×6
9046MAR-150-MK 1.50 4 6×6
9046MAR-175-MK 1.75 4 6×6
9046MAR-200-MK 2.00 4 6×6
9046MAR-225-MK 2.25 4 6×6
9046MAR-250-MK 2.50 4 6×6
9046MAR-275-MK 2.75 4 6×6
9046MAR-300-MK 3.00 4 6×6
9046MAR-325-MK 3.25 4 6×6
9046MAR-350-MK 3.50 4 6×6
9046MAR-375-MK 3.75 4 6×6
9046MAR-400-MK 4.00 4 6×6
9046MAR-450-MK 4.50 4 6×6
9046MAR-500-MK 5.00 Large Bore 4 6×6
9066MAR-500-01 5.00 Large Bore 6 6×6
9046MAR-600-01 6.00 Large Bore 4 8.25×8.25
9066MAR-600-01 6.00 Large Bore 6 8.25×8.25
9046MAR-800-01 8.00 Large Bore 4 10×10
9066MAR-800-01 8.00 Large Bore 6 10×10
9046MAR-1000-01 10.00 Large Bore 4 12×12
9066MAR-1000-01 10.00 Large Bore 6 12×12

62 Series Fiberglass Hose

62 Series Fiberglass Hose

Straight silicone hose with fiberglass reinforcement for high temperature turbocharger application.

FEATURES & BENEFITS

  • 3 ply silicone fiberglass reinforced configuration for high temperature applications.
  • Perfect where air flow and friction requirements are not severe.
  • Recommended for temperatures: -65° to 550°F (-53.9°C to 287.8°C).
  • Resistant to minor oil splash and petrochemical exposure.
  • Rigid turbocharger connection.
  • UV and ozone resistant.
  • Fluorocarbon liner available for increased petrochemical combustion residue resistance.
  • Note: Heat shield available.
  • Note: Can be produced up to 10 ply.
Part # Hose ID Hose OD
inches mm inches mm
62-025 0.25 6.35 0.48 12.19
62-038 0.38 9.65 0.61 15.49
62-050 0.50 12.70 0.73 18.54
62-062 0.63 16.00 0.86 21.84
62-075 0.75 19.05 0.98 24.89
62-087 0.88 22.35 1.11 28.19
62-100 1.00 25.40 1.23 31.24
62-106 1.06 27.00 1.29 32.84
62-112 1.13 28.58 1.36 34.42
62-125 1.25 31.75 1.48 37.59
62-131 1.31 33.27 1.54 39.12
62-138 1.38 35.05 1.61 40.89
62-150 1.50 38.10 1.73 43.94
62-162 1.62 41.15 1.85 46.99
62-175 1.75 44.45 1.98 50.29
62-188 1.88 47.75 2.11 53.59
62-200 2.00 50.80 2.23 56.64
62-212 2.13 53.98 2.36 59.82
62-225 2.25 57.15 2.48 62.99
62-238 2.38 60.45 2.61 66.29
62-250 2.50 63.50 2.73 69.34
62-262 2.62 66.55 2.85 72.39
62-275 2.75 69.85 2.98 75.69
62-287 2.88 73.03 3.11 78.87
62-300 3.00 76.20 3.23 82.04
62-312 3.13 79.38 3.36 85.22
62-325 3.25 82.55 3.48 88.39
62-338 3.38 85.73 3.61 91.57
62-350 3.50 88.90 3.73 94.74
62-362 3.63 92.08 3.86 97.92
62-375 3.75 95.25 3.98 101.09
62-400 4.00 101.60 4.23 107.44
62-450 4.50 114.30 4.73 120.14
62-500 5.00 127.00 5.23 132.84
62-600 6.00 152.40 6.23 158.24
62-700 7.00 177.80 7.23 183.64
62-800 8.00 203.20 8.23 209.04

364 Series System Hose

364 Series System Hose

Designed and engineered for a wide variety of high temperature turbocharger applications.

FEATURES & BENEFITS

  • 4 ply silicone aramid reinforced configuration.
  • Provides excellent resistance for high temperature applications.
  • Economical for a wide variety of turbocharger applications.
  • Designed and engineered for a wide variety of high temperature turbocharger applications.
  • Resistant to minor oil splash and petrochemical exposure.
  • Excellent flexibility.
  • Recommended for temperatures: -65° to 500°F (-53.9°C to 260°C).
  • UV and ozone resistant.
  • Fluorocarbon liner available for increased petrochemical combustion residue resistance.
  • Note: Heat shield available.
Part # Hose ID Hose OD
inches mm inches mm
364-025 0.25 6.35 0.57 14.48
364-038 0.38 9.65 0.70 17.78
364-050 0.50 12.7 0.82 20.83
364-062 0.63 16.00 0.95 24.13
364-075 0.75 19.05 1.07 27.18
364-087 0.88 22.35 1.20 30.48
364-100 1.13 25.40 1.32 33.53
364-106 1.06 27.00 1.38 35.13
364-112 1.13 28.58 1.45 36.70
364-125 1.25 31.75 1.57 39.88
364-131 1.31 33.27 1.63 41.40
364-138 1.38 35.05 1.70 43.18
364-150 1.50 38.10 1.82 46.23
364-162 1.62 41.15 1.94 49.23
364-175 1.75 44.45 2.07 52.58
364-188 1.88 47.75 2.20 55.88
364-200 2.00 50.80 2.32 58.93
364-212 2.13 53.98 2.45 62.10
364-225 2.25 57.15 2.57 65.28
364-238 2.38 60.45 2.70 68.58
364-250 2.50 63.50 2.82 71.63
364-262 2.62 66.55 2.94 74.68
364-275 2.75 69.85 3.07 77.98
364-287 2.88 73.03 3.20 81.15
364-300 3.00 76.20 3.32 84.33
364-312 3.13 79.38 3.45 87.50
364-325 3.25 82.55 3.57 90.68
364-338 3.38 85.73 3.70 93.85
364-350 3.50 88.90 3.82 97.03
364-362 3.63 92.08 3.95 100.20
364-375 3.75 95.25 4.07 103.38
364-400 4.00 101.6 4.32 109.73
364-450 4.50 114.3 4.82 122.43
364-500 5.00 127.00 5.32 135.13
364-600 6.00 152.4 6.32 160.53
364-700 7.00 177.8 7.32 185.93

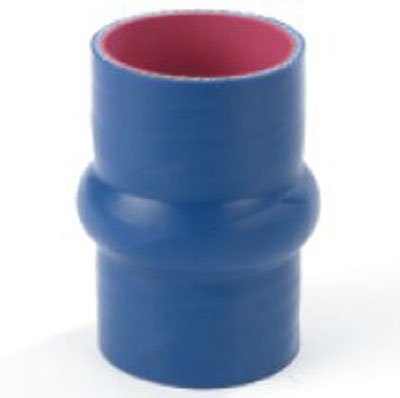

76 Series Coolant/Cold Side

76 Series Coolant/Cold Side

Suitable for coolant and cold side turbocharger applications in heavy duty truck, high performance automotive and marine engines.

FEATURES & BENEFITS

  • Reinforced configuration for fatigue-resistance at high temperatures.
  • Suitable for coolant and cold side turbocharger applications in heavy duty automotive and marine engines.
  • Recommended for temperatures: -65°F to +350°F (-53.9°C to 176.6°C).
  • Fluorocarbon liner available for increased petrochemical combustion residue resistance.
  • Silicon provides excellent high and low temperature resistance.
  • Compensates for misalignment and offsets vibration.
  • UV and ozone resistant.
  • Special silicone liner resists coolant.
  • Note: Additional hump configurations available.
Part # Hose ID Hose OD Hose Lgth In
inches mm inches mm
76-075-600 0.75 19.05 1.12 28.50 6.00
76-100-600 1.00 25.40 1.37 34.85 6.00
76-125-600 1.25 31.75 1.62 41.20 6.00
76-150-600 1.50 38.10 1.87 47.55 6.00
76-175-600 1.75 44.45 2.07 53.90 6.00
76-200-600 2.00 50.80 2.37 60.25 6.00
76-225-600 2.25 57.15 2.62 66.60 6.00
76-250-600 2.50 63.50 2.87 72.95 6.00
76-275-600 2.75 69.85 3.12 79.30 6.00
76-300-600 3.00 76.20 3.37 85.65 6.00
76-325-600 3.25 82.55 3.62 92.00 6.00
76-350-600 3.50 88.90 3.87 98.35 6.00
76-375-600 3.75 95.25 4.12 104.70 6.00
76-400-600 4.00 101.6 4.37 111.05 6.00
76-450-600 4.50 114.3 4.87 123.75 6.00
76-500-600 5.00 127.00 5.37 136.45 6.00
76-550-600 5.50 139.70 5.87 149.15 6.00
76-600-600 6.00 152.40 6.37 161.85 6.00
76-650-600 6.50 165.10 6.87 174.55 6.00
76-700-600 7.00 177.80 7.37 187.25 6.00
76-750-600 7.50 190.50 7.87 199.95 6.00
76-800-600 8.00 203.20 8.37 212.65 6.00

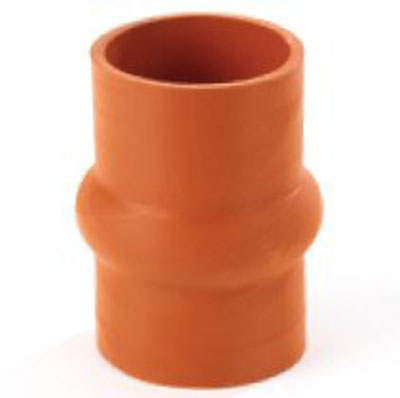

3641 Aramid Hot Side

3641 Aramid Hot Side

Designed and engineered for a wide variety of high temperature turbocharger applications.

FEATURES & BENEFITS

  • Aramid reinforced configuration for fatigue resistance at high temperatures.
  • Recommended for temperatures: -65° to 500°F (-53.9°C to 260°C).
  • Fluorocarbon liner available for increased petrochemical combustion residue resistance.
  • Designed and engineered for a wide variety of high temperature turbocharger applications.
  • Silicone is resistant to extreme temperature conditions.
  • Resistant to minor oil splash and petrochemical exposure.
  • Compensates for misalignment and offsets vibration.
  • UV and ozone resistant.
  • Long service life.
  • 4 ply
Part # Hose ID Hose OD Hose Lgth In
inches mm inches mm
3641-075-600 0.75 19.05 1.07 27.08 6.00
3641-100-600 1.00 25.40 1.32 33.43 6.00
3641-125-600 1.25 31.75 1.57 39.78 6.00
3641-150-600 1.50 38.10 1.82 46.13 6.00
3641-175-600 1.75 44.45 2.07 52.48 6.00
3641-200-600 2.00 50.80 2.32 58.83 6.00
3641-225-600 2.25 57.15 2.57 65.18 6.00
3641-250-600 2.50 63.50 2.82 71.53 6.00
3641-275-600 2.75 69.85 3.07 77.88 6.00
3641-300-600 3.00 76.20 3.32 84.23 6.00
3641-325-600 3.25 82.55 3.57 90.58 6.00
3641-350-600 3.50 88.90 3.82 96.93 6.00
3641-375-600 3.75 95.25 4.07 103.28 6.00
3641-400-600 4.00 101.60 4.32 109.63 6.00
3641-450-600 4.50 114.30 4.82 122.33 6.00
3641-500-600 5.00 127.00 5.32 135.03 6.00
3641-550-600 5.50 139.70 5.82 147.73 6.00
3641-600-600 6.00 152.40 6.32 160.43 6.00
3641-650-600 6.50 165.10 6.82 173.13 6.00
3641-700-600 7.00 177.80 7.32 185.83 6.00
3641-750-600 7.50 190.50 7.82 198.53 6.00
3641-800-600 8.00 203.20 8.32 211.23 6.00
3641-850-600 8.50 215.90 8.82 223.93 6.00
3641-1000-600 10.00 254.00 10.32 262.03 6.00

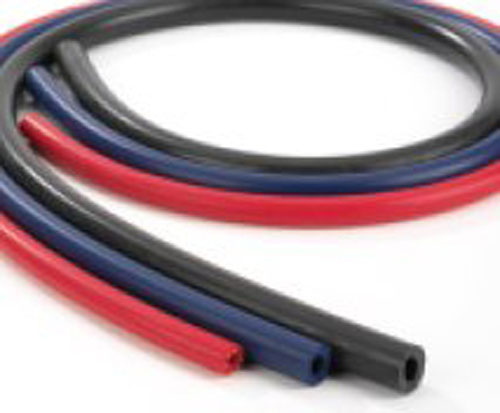

Vacuum Hose – 50 Series

Vacuum Hose – 50 Series

Used for vacuum advance, windshield washers, coolant overflow, emission control and other applications. Vacuum tubing is an unreinforced extruded construction of silicone rubber.

FEATURES & BENEFITS

  • Extruded silicone hose.
  • For use in vacuum advance, coolant overflow, emission control and high temperature applications.
  • Available in 25′, 50′, and 100′ cartons; reel size available up to 1000′ depending on hose diameter.
Part # Tube ID Tube OD
50-012 0.125 0.225
50-016 0.156 0.286
50-018 0.188 0.348
50-025 0.250 0.450
50-031 0.313 0.563
50-038 0.375 0.675

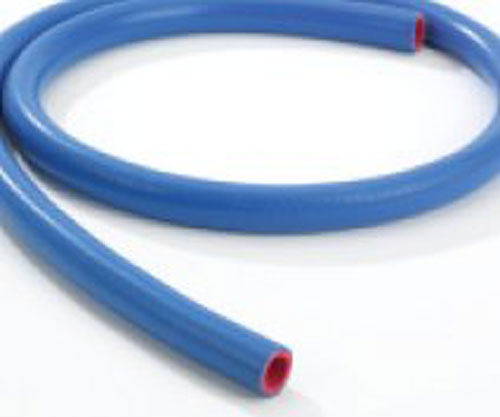

Heater Hose – 80 Series

Heater Hose – 80 Series

For heavy duty pressure connections in hostile engine environments. Ideal for extreme temperature and various pressure ranges where high performance levels are required

FEATURES & BENEFITS

  • Single-braided polyester reinforcement.
  • Also available in heavy wall configurations for high pressure applications.
  • High burst strength and excellent heat resistance.
  • Recommended for temperatures: -65° to +350°F (-53.9°C to +176.6°C).
  • Resistant to coolants, cold leaks, cracking, peeling, aging and ozone.
  • Aramid configuration available for temperatures up to 500°F (260°C).
  • Meets and exceeds all performance and physical characteristics of SAE J20 R3, Class A.
  • Available in 25′, 50′ and 100′ cartons; other reel lengths available depending on hose diameter. Contact factory.
Part # Hose ID Hose Wall Hose OD
inches mm inches mm inches mm
80-018 0.188 4.78 0.138 3.51 0.46 11.79
80-025 0.250 6.35 0.138 3.51 0.53 13.36
80-031 0.313 7.94 0.138 3.51 0.59 14.95
80-038 0.375 9.53 0.157 3.99 0.69 17.50
80-050 0.500 12.70 0.157 3.99 0.81 20.68
80-062 0.625 15.88 0.157 3.99 0.94 23.85
80-075 0.750 19.05 0.157 3.99 1.06 27.03
80-087 0.875 22.23 0.157 3.99 1.19 30.20
80-100 1.000 25.40 0.169 4.29 1.34 33.99
80-112 1.125 28.58 0.194 4.93 1.51 38.43

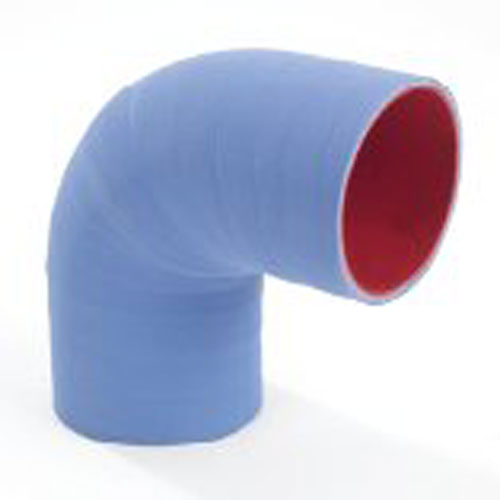

90 Series Polyester Reinforced 90°

90 Series Polyester Reinforced 90°

90° coolant elbows designed to meet high performance requirements specified in various industry standards.

FEATURES & BENEFITS

  • 4 ply silicone polyester reinforced configuration to provide strength and flexibility.
  • Silicone liner creates barrier to isolate medium.
  • Recommended for temperatures: -65° to +350°F (-53.9°C to +176.6°C).
  • Custom ply configurations available to meet flexibility and burst requirements.
  • UV and ozone resistant.
  • Meets and exceeds all performance and physical characteristics of SAE J20 R1, SAE J20 R1 H.T. Class A, TMC RP303B Grade I and Grade II, Mil Spec A-A-52426 and various heavy-duty OEM requirements.
  • NOTE: See 3648 Series Aramid 90° Elbows for higher temperature applications.
Part # Hose ID Leg 1 Leg 2 Inside Radius Wall Thickness
inches (A) inches (B) inches (R ) inches (T) inches
90-050-MK 0.50 6.00 6.00 1.00 0.19
90-062-MK 0.625 6.00 6.00 1.00 0.19
90-075-MK 0.75 6.00 6.00 1.00 0.19
90-087-MK 0.875 6.00 6.00 1.50 0.19
90-100-MK 1.00 6.00 6.00 1.50 0.19
90-125-MK 1.25 6.00 6.00 1.75 0.19
90-150-MK 1.50 6.00 6.00 2.00 0.19
90-175-MK 1.75 6.00 6.00 1.75 0.19
90-200-MK 2.00 6.00 6.00 4.00 0.19
90-225-MK 2.25 6.00 6.00 2.25 0.19
90-250-MK 2.50 6.00 6.00 2.50 0.19
90-275-MK 2.75 6.00 6.00 3.50 0.19
90-300-MK 3.00 6.00 6.00 3.00 0.19
90-350-MK 3.50 6.00 6.00 3.50 0.19
90-400-MK 4.00 6.00 6.00 4.00 0.19

3648 Series Aramid – 90°

3648 Series Aramid – 90°

Aramid reinforced 90° high temperature elbow, designed to meet modern elevated engine compartment temperatures.

FEATURES & BENEFITS

  • 4 ply silicone aramid reinforced configuration.
  • Economical for a wide variety of turbocharger applications.
  • Designed and engineered for a wide variety of high temperature turbocharger applications.
  • Resistant to minor oil splash and petrochemical exposure.
  • Recommended for temperatures: -65° to 500°F (-53.9°C to 260°C).
  • Excellent flexibility.
  • UV and ozone resistant.
  • Fluorocarbon liner available for increased petrochemical combustion residue resistance.
  • Heat shield available.
  • Custom ply configurations available to meet flexibility and burst requirements.
Part # Hose ID Leg 1 Leg 2 Inside Radius Wall Thickness
inches (A) inches (B) inches (R ) inches (T) inches
3648-087-MK 0.875 6.00 6.00 1.50 0.16
3648-100-MK 1.00 6.00 6.00 1.50 0.16
3648-125-MK 1.25 6.00 6.00 1.75 0.16
3648-150-MK 1.50 6.00 6.00 2.00 0.16
3648-175-MK 1.75 6.00 6.00 1.75 0.16
3648-200-MK 2.00 6.00 6.00 4.00 0.16
3648-225-MK 2.25 6.00 6.00 4.00 0.16
3648-250-MK 2.50 6.00 6.00 3.00 0.16
3648-275-MK 2.75 6.00 6.00 3.50 0.16
3648-300-MK 3.00 6.00 6.00 2.50 0.16
3648-350-MK 3.50 6.00 6.00 3.50 0.16
3648-400-MK 4.00 6.00 6.00 4.00 0.16
